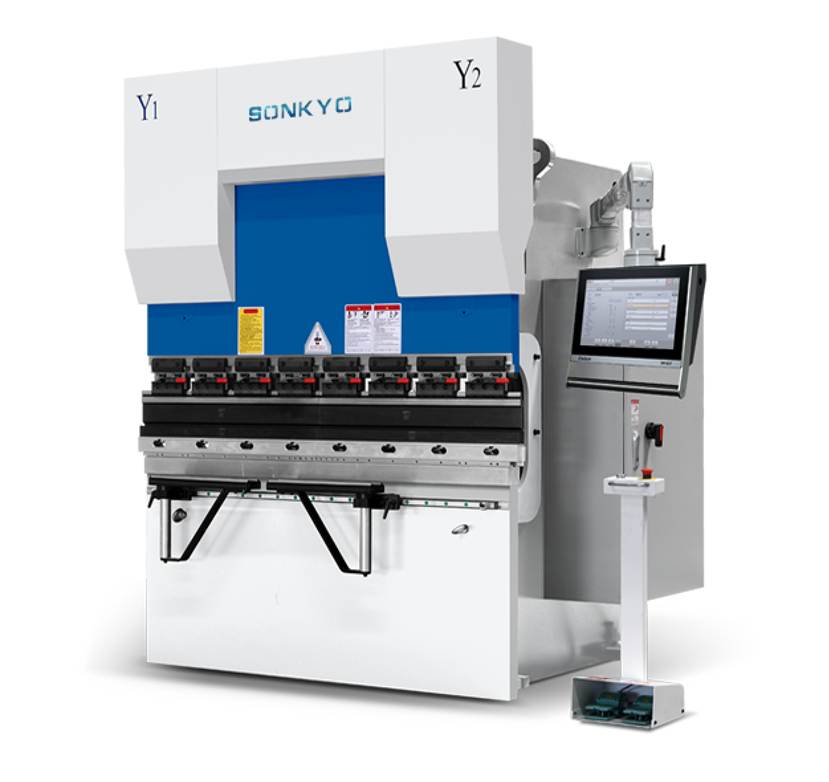

SPES Series
Hybrid Electric CNC Press Brake

Through the dual servo oil-electric hybrid system, a group of servo motors and servo pumps are controlled for the left and right oil cylinders respectively.

• More accurate pressure, position and synchronous control, and the repetition accuracy of the system is up to 5 μ m.
• Faster performance.
• Closed hydraulic system, tank volume reduced by 75%.
• Hydraulic system with high stability and long service life.
• High efficiency and energy saving, realize energy supply on demand, and significantly reduce electricity expenditure.
• Effectively reduce the noise of the system during operation, and the motor has no rotation and almost no noise during standby.

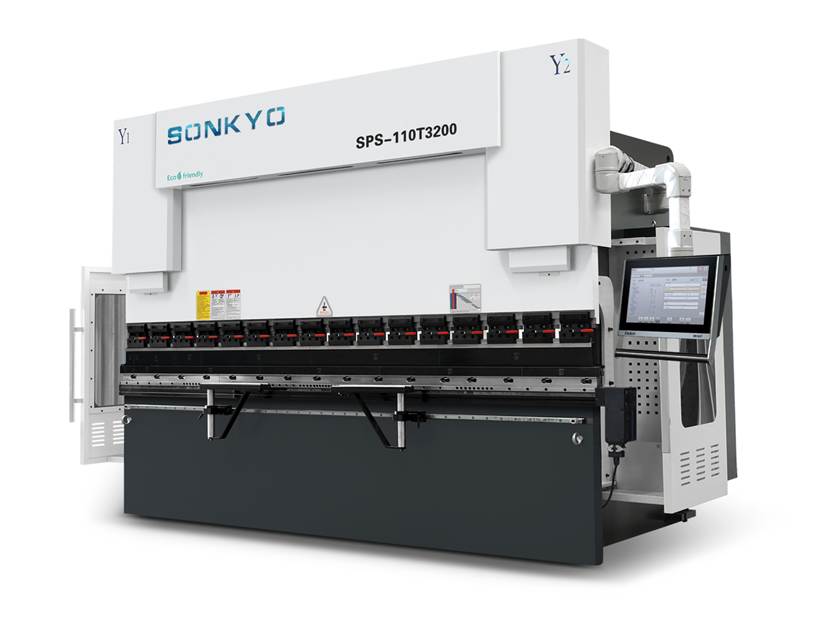

SPS Series
Servo Main Motor CNC Press Brake

The main motor is a high-performance servo motor. Using single servo pump control technology, it is a cost-effective, environmentally friendly and energy-saving solution.

• The main motor is equipped with servo motor as standard to realize energy supply on demand and significantly reduce electricity expenditure.
• The servo pump system only rotates when needed, and the comprehensive noise is reduced by 30%.
• The control mode of torque limit and analog speed is adopted to eliminate the closure and overflow of the valve and greatly reduce the oil temperature.
• Extend service life and reduce maintenance costs.

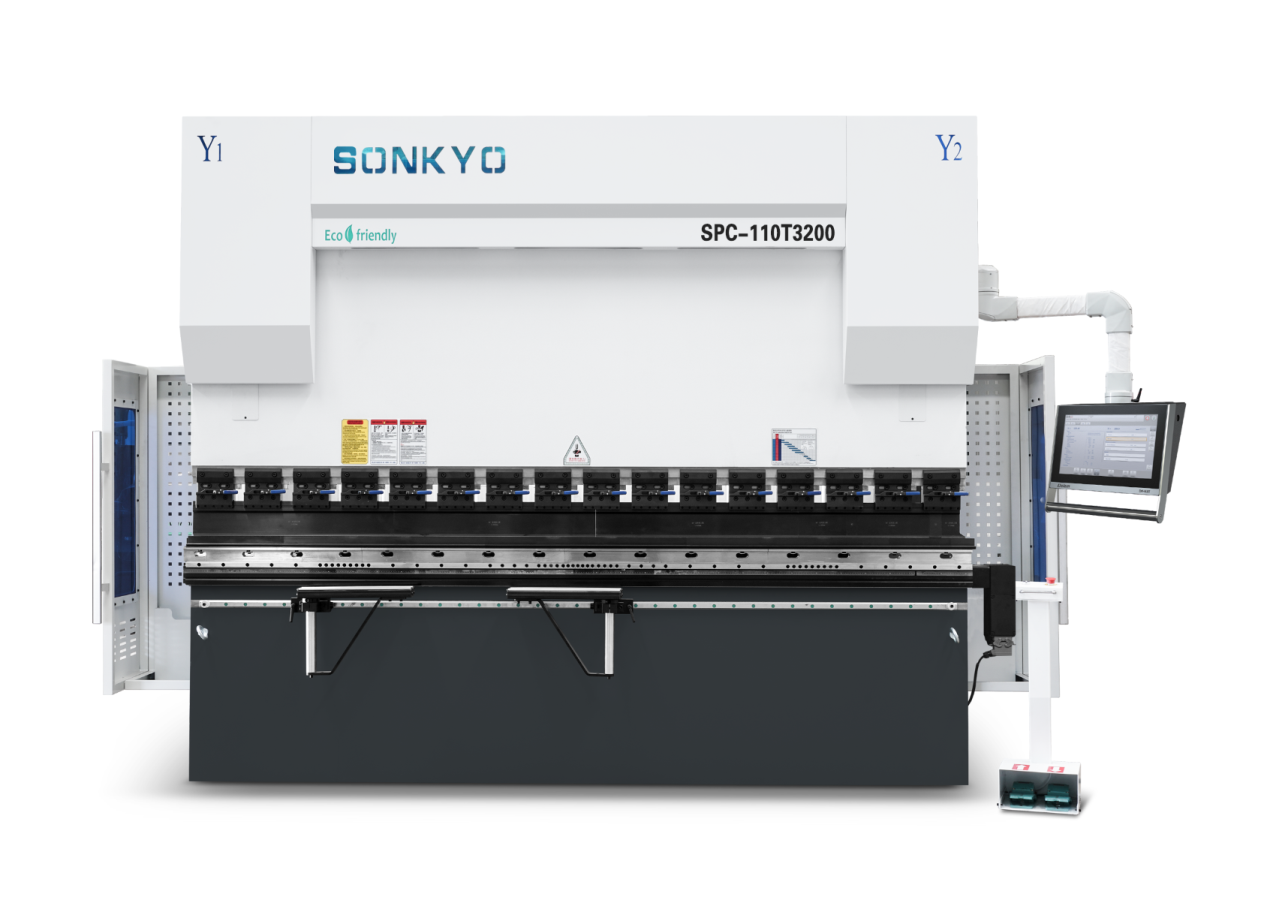

SPC Series
Electro-hydraulic Synchronized CNC Press Brake

• Imported configuration, stable and reliable.
• High strength frame with thick plate and sufficient material.
• High-precision back gauge system.
• Standard 4 + 1 axis NC (Y1, Y2, X, R + V).
• Closed loop control of automatic mechanical deflection compensation for worktable.
• Throat deformation compensation mechanism.
